Periphery Heating Corrugating Roll

Description Inquire

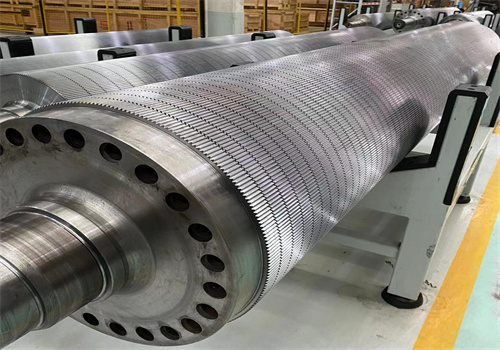

Corrugating Roll Description
Peripheral heating Corrugating roll is made of high quality alloy steel& it is a new technology comes recently It's made by high precision CNC corrugated roll grinding machine from the USA. The quality is very good. It is treated by special corrugated roll surface treated technology. The hardness is very high. High-speed corrugated roll with a big diameter. The maximum working speed is 300m/min. Gear type: UV, V. Flute type: A, B, C, BC, D, E, F optional. Fingerless suction and inner suction are optional. We are engaged in the design, repair, and manufacture of all kinds of corrugating rolls.

Peripheral Corrugated Roller Feature
· Heats-up in 5 minutes at flute changes
· 25% longer lifetime than siphon-pipe rolls
· 10% energy saving on single facers
· Always hot no condensate

Product Parameters of Single Facer Corrugated Roller Flute Type

Flute Type	Flute	Teeth/300mm	Height Of Flute
A	UV	30±2	4.6-4.9
C	UV	39±3	3.6-3.9
CB	UV	44±2	3.0-3.4
B	UV	50±2	2.6-2.9
BE	UV	66±3	1.9-2.1
E	UV	90±10	1.1-1.5
F	UV	124±10	0.7-0.8
G	UV	185±12	0.5-0.65
N	UV	200±15	0.4-0.5
O	UV	267 or design	0.25-0.35
