NC CUT OFF

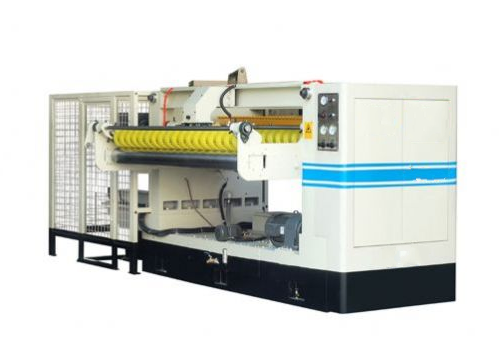

Computer spiral crosscutting machine

Computer spiral crosscutting machine

Computer spiral crosscutting machine available breadth: 1400-2200mm

Computer spiral crosscutting machine Specification
1.Max machine speed: 200m/min, when cutting length is 0.5m speed is 100m/min
2. Cutting length: 500mm-9999mm, cutting accuracy±1mm
3. Up to 999 job sizes can be preset, auto change job size without machine stop, connected with the computer to make production management easy
4. All drive gear is made of high quality alloy steel, which is heat treated and exactitude processed, high drive accuracy, and long life.
5. Circulating lubrication to ensure lubricant and also help to clean and cool
6. Paper entering and out are separated, each has their frequency convert motor to control speed, synchronized driven, stable and low noise
7. Double-row round wheels are used at the entrance to reduce the cutting errors caused by the dithering of paper board.
8. Exit and sending platform use round wheels and conveyer belt, which make paper board ejection steady.
9. Round wheels device pneumatic controlled, special design, easy to operate
10. Pedestal and wheel box made of grey cast iron, good steel, and good shake-resistance
11. AC servo-control system energy saves above 30%
12.Motor: main motor: 37kw/55kw, oil pump motor: 0.2kw, convey motor: 2.2kw.

Width mm Dimension (LxWxH) mm Weight T Gross Power kW
1400 2380 x 2220 x 1250  6 37
1600 2580 x 2220 x 1250 6.5 37
1800 2780 x 2220 x 1250 7 55
2000 2980 x 2220 x 1250 7.5 55
2200 3180 x 2220 x 1250 8 75
