Fanfold Corrugated Stacking Machine

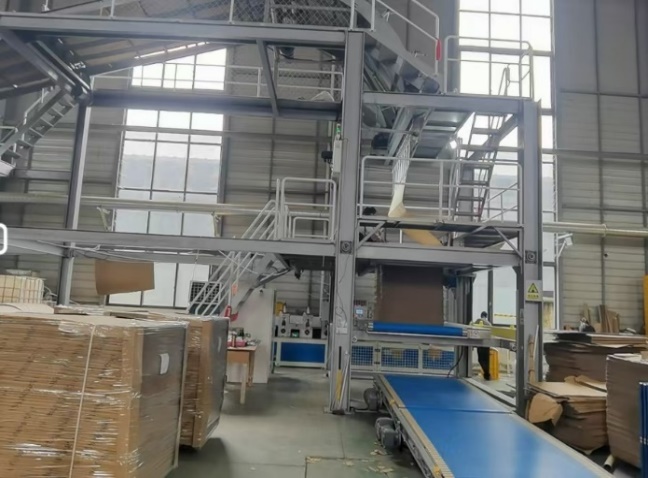

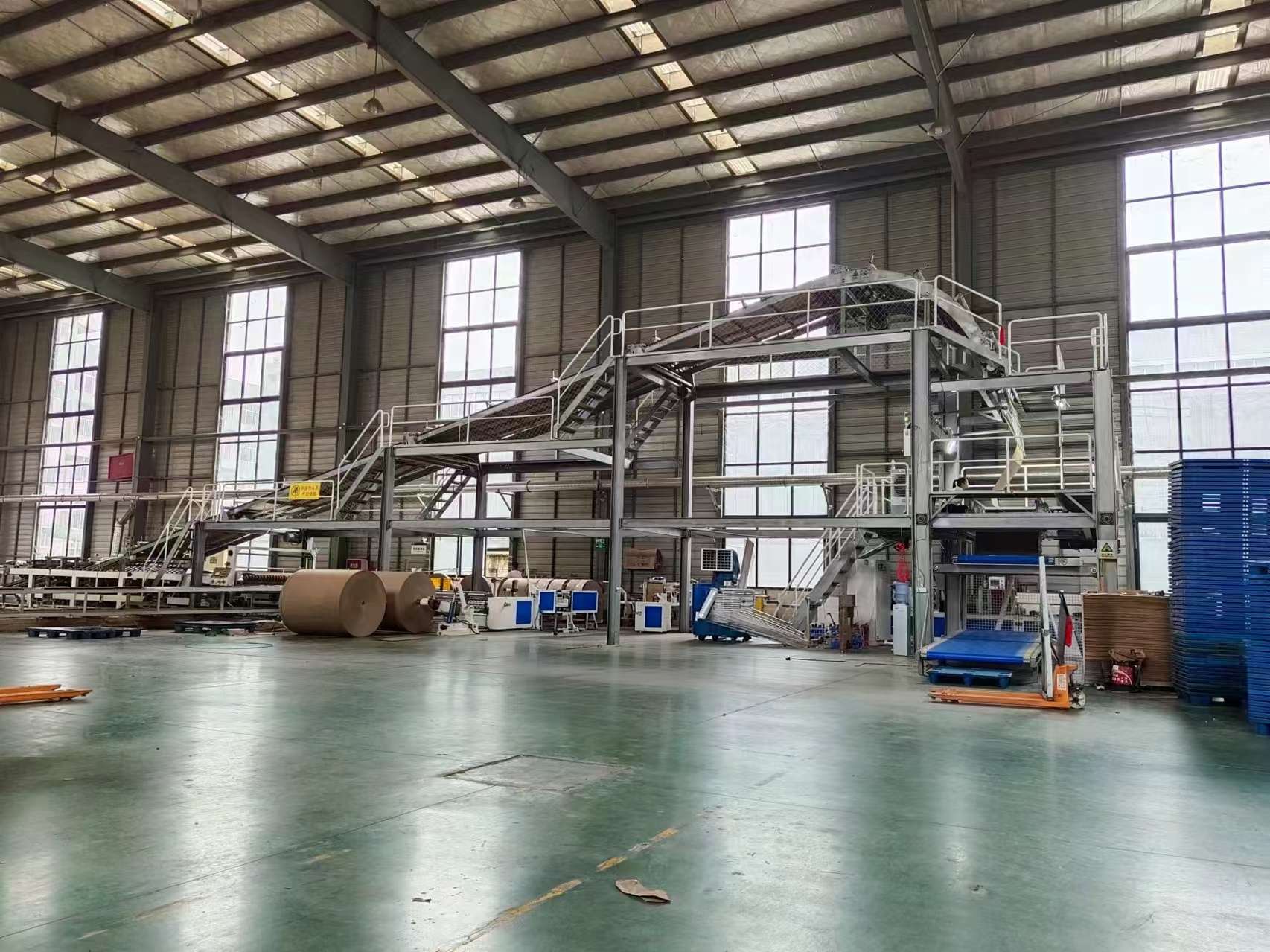

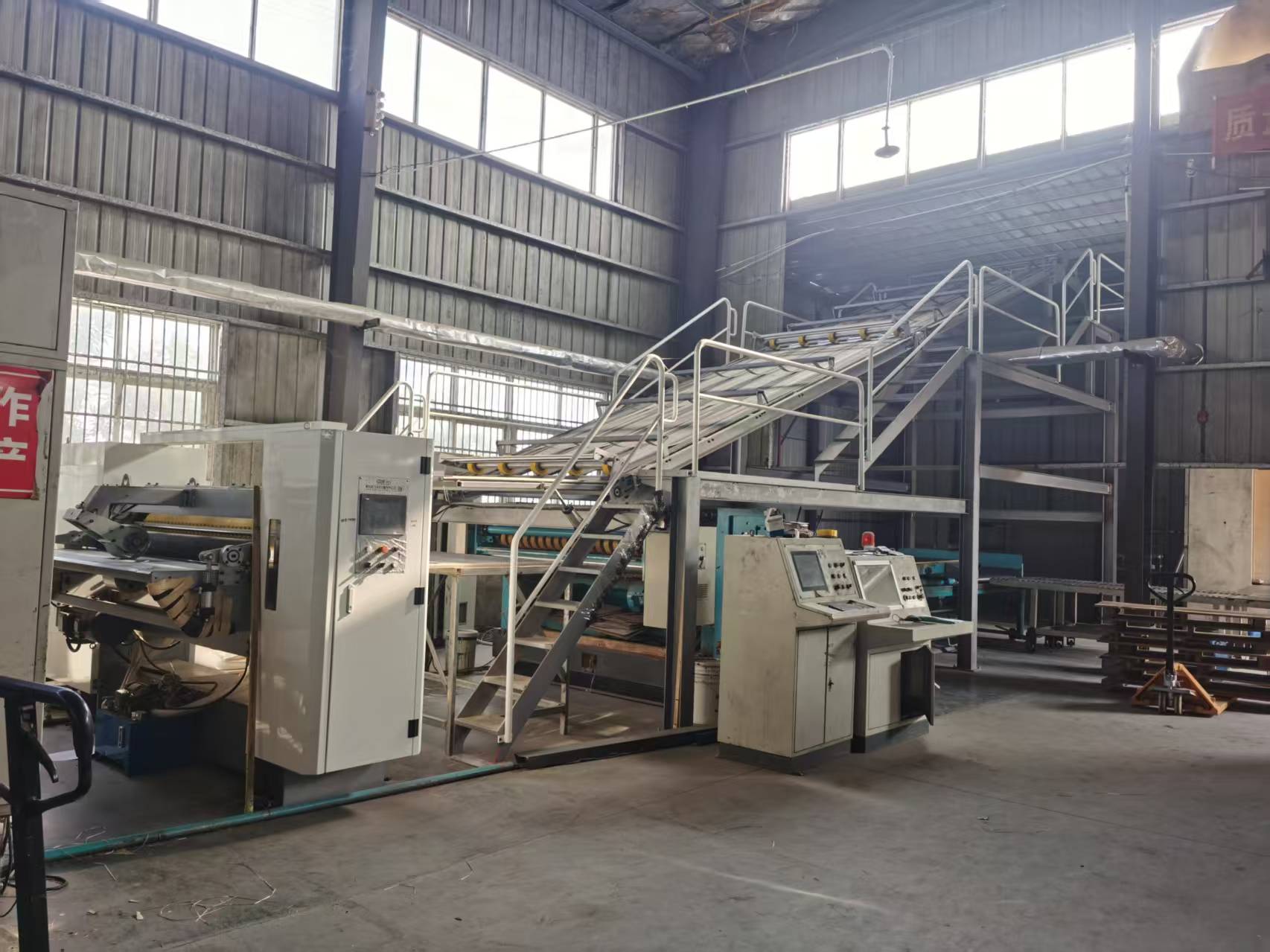

The Automatic Fanfold Cardboard Stacking Machine is installed at the dry end of the corrugated board production line; it receives finished boards from the cut-off machine and performs continuous, uninterrupted automatic stacking. After undergoing conveying, alignment, and precise counting, the boards are stacked into neat piles. Once the preset sheet count is reached, the machine automatically switches stacks and discharges the finished piles, facilitating transport, storage, and downstream printing and die-cutting processes. This system significantly reduces manual handling and is suitable for continuous production on medium- to high-speed corrugated lines.

* Automatic control system based on a high-quality industrial PC and high-performance PLC — fast response, stable.

* Conveying and stacking automatically synchronize with line speed.

* The control system can store orders and support automatic or manual order changes; a communication interface is reserved for connection with production management for automatic stack change and order management.

* Modular-belt basket stacking platform, servo-driven lifting for smooth stacking and neat piles; when stack height reaches set value, the platform automatically and smoothly shifts the stack horizontally under VFD control.

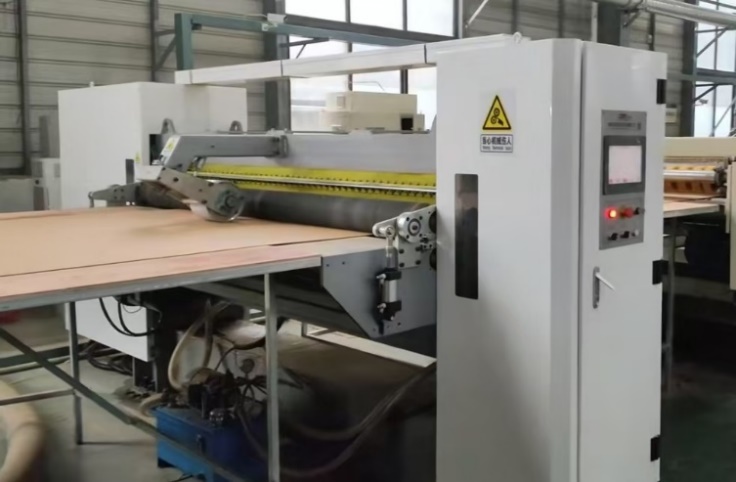

* Cutting & change-over mechanism: includes paper support frame and cutting unit. Change-over paper support frame driven by servogear-rack structure.

* Entire machine designed according to CE standards; safe operation; independent sealed electrical cabinet with industrial A/C as standard; electrical components run in a dust-free, constant temperature and humidity environment.
