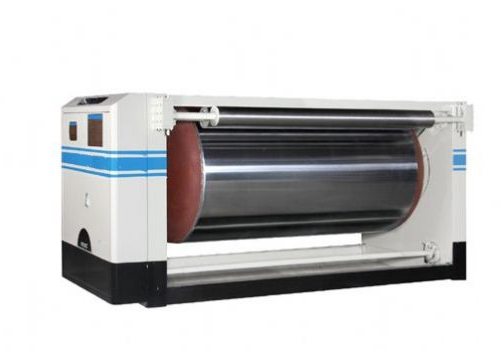

Pre-Heater

Pre-Heater Description
Pre-heater available breadth: 1600-2500mm

Pre-Heater Specification
1. Pre-heater diameter1000mm/1100mm/1200mm. butterfly head makes heating equal.

2. Pre-heater designed to be rotary at a fixed speed, which makes the temperature of the surface equal and passes the heat to the paper completely, and also reduces heat loss and makes the paper not easy to be broken off.

3. Flange is used for the steam rotary joint.

4. Made according to a national standard of pressure container I, a test certificate is followed.

5. Paper guide roll: φ140mm, one fixed, the other travel outside of preheating roll to control the heating surface. the parallelism of the travel paper guide roll can be adjusted.

6. With 0.55kw/0.75kw motor and 2 sets of worm wheel decelerator.
